Sonning2 OHA Continuous Radiant Heaters

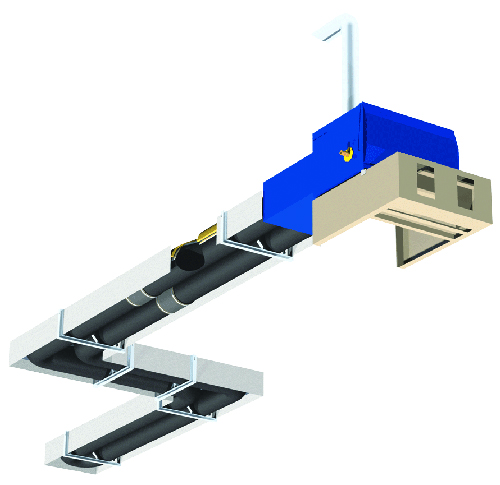

The Sonning2 OHA is a continuous gas fired radiant tube heating system that uses a single burner. These units are designed specifically to suit the building it is required to heat, becoming a go-to choice for sustainable radiant heating. Installed at high level, these units are ideal for areas such as aircraft hangers and factories.

Reznor strives to become part of the ‘design team’, working closely with engineers or end users to determine the specific design parameters for the OHA scheme layout. This contact between the company’s engineers and the system designer or client will give the most effective OHA system.


This product is custom built to fit each application. For more information, please contact our sales department.

PLEASE NOTE:
Have a Nortek trade account? Ensure your account is connected and log in to see personalised discounted prices. Contact us.

Product Description

The Sonning2 OHA is a modulating radiant tube heating system that includes 6 natural gas or propane burner models from 100 to 370kW, but will operate equally as effective on a wide variety of fuels: natural gas, LPG and oil.

Lengths can vary from 35 to 250 meters with a maximum temperature range from 120 – 290°C.

Designed to provide uniform heat coverage over the entire floor area, the system can also cater for distinct zones providing a varied degree of comfort level within the overall layout of the building.

Features and Benefits

• High performance blown air, mono-flame and mono-nozzle low NOx premix and burner
• Simple to maintain, as there are no serviceable parts within the heated area
• Modulating burner can achieve allows this unit to achieve a high thermal efficiency of 96% ncv
• No system noise within heated area (external burner)
• Bespoke installation with experienced Reznor engineer team

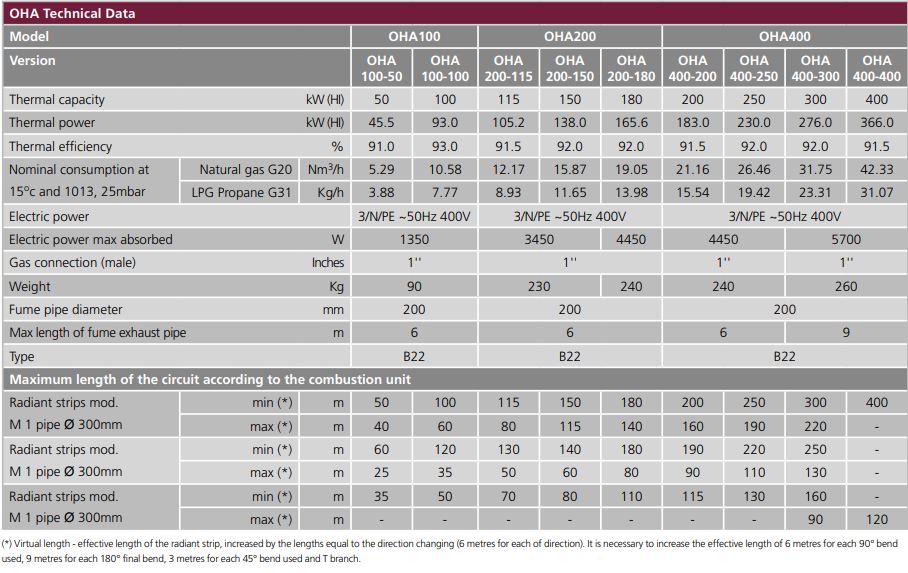

Technical Specification

Brochures + Manuals

Installation ManualProduct Guide

Installation Manual

English

Reznor, Sonning2, OHA Installation Manual, EN 2018-05, D301067



Language: English
Production status: current-production
Download

Reznor, Sonning2, OHA RHE Installation Manual, EN 2018-05, D301061



Language: English
Production status: current-production
Download

Product Guide

English

View the Full Sonning2 Product Guide



Language: English
Production status: current-production
Download
